LB104S01-TL01 LG Display 10.4" 800(RGB)×600, SVGA 96PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LB104S01-TL01 LG Display 10.4" 800(RGB)×600, SVGA 96PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : LG DISPLAY

Model Number : LB104S01-TL01

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LB104S01-TL01

BRAND : LG DISPLAY

SIZE : 24INCH

BRIGHTNESS : 250 cd/m²

Lamp Type : WLED

RESOLUTION : 800(RGB)×600, SVGA 96PPI

VIEWING ANGLEG : 65/65/45/55 (Min.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG LCD LB104S01-TL01 Mechanical Details

Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch(mm)
0.088×0.264 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.264×0.264 (H×V) [96PPI]
Mechanical Size :
Active Area(mm)
211.2(H) × 158.4(V)
Bezel Area(mm)
214.2(H) × 161.8(V)
Outline Dim.(mm)
224.5(H) × 172(V)
Depth(mm)
5.7±0.3
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M2) on left, right bezel
Other Spec :
Weight
290/300g (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)

LG LCD LB104S01-TL01 Optical Details

Basic Information :
Luminance(cd/m²)
250 (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Viewing Angle
65/65/45/55 (Min.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
6/19 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.305; Wy:0.320
Display Colors
262K (6-bit)
Color Temperature
7037K
White Uniformity
1.40 (Max.)(5 points)
1931 Color Gamut :
NTSC Ratio
46%
sRGB
63% coverage
Adobe RGB
48% coverage
DCI-P3
47% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG LCD LB104S01-TL01 Interface Details

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
160/190mA (Typ./Max.)
Consumption
0.55/0.63W (Typ./Max.)
Signal Type :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT100-20P-LS-SMT
1.0 mm
20 pins
1 pcs
LVDS-20P1C6B-090A

LG LCD LB104S01-TL01 Backlight Details

Backlight Features :
Type
CCFL
Quantity
1 pcs
Position
Edge light type (Bottom side)
Replacement
-
Shape
Straight
Life Time
30K(Typ.) Hours
Lamp Electrical :
Voltage Supply
488/500/640V (Min./Typ./Max.)
Current Supply
2.0/6.0/6.5mA (Min./Typ./Max.)
Frequency
45/60/80KHz (Min./Typ./Max.)
Startup Voltage
845/1015V (Max.)(Ta=+25/0℃)
Consumption
3.0/3.3W (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
BHSR-02VS-1
3.5 mm
2 pins
1 pcs
BLL-2PINS-HL
Backlight Driver :
No

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LB104S01-TL01 LG Display 10.4" 800(RGB)×600, SVGA 96PPI 250 cd/m² INDUSTRIAL LCD DISPLAY


Wholesale LB104S01-TL01 LG Display 10.4" 800(RGB)×600, SVGA 96PPI 250 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

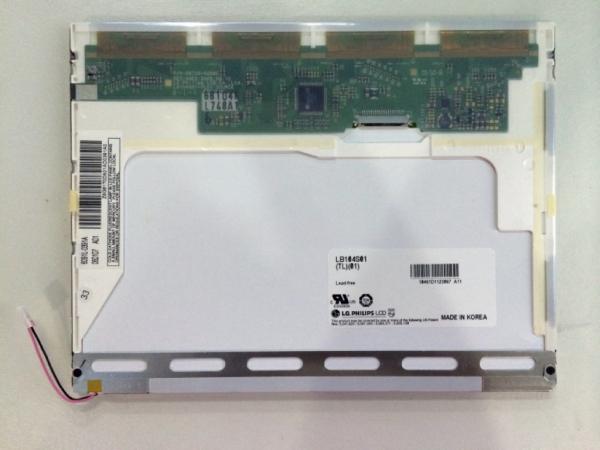

LB104S01-TL01 LG Display 10.4" 800(RGB)×600, SVGA 96PPI 250 cd/m² INDUSTRIAL LCD DISPLAY Images
