LP156WFE-SPB1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : LG DISPLAY

Model Number : LP156WFE-SPB1

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP156WFE-SPB1

BRAND : LG DISPLAY

SIZE : 15.6INCH

BRIGHTNESS : 300 cd/m²

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080, FHD 141PPI

VIEWING ANGLEG : 85/85/85/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP156WFE-SPB1 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.05975×0.17925 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.17925×0.17925 mm (H×V) [141PPI]
Mechanical Size :
Display Area
344.16×193.59 mm (H×V)
Outline Dim.
-
Outline Dim.
350.66×211.54 mm (H×V)
Outline Depth
2.4/2.6 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets :
Without
Other Features :
Weight
270/280g (Typ./Max.)
Surface
Antiglare


LG Display LP156WFE-SPB1 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
30 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.25/1.67 (Max.)(5/13 points)
1931 Color Gamut :
NTSC Ratio
73%
sRGB
100% coverage
Adobe RGB
75% coverage
DCI-P3
76% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP156WFE-SPB1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
15K(Min.) Hours
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
12.0V (Typ.)
Current Input
266/275mA (Typ./Max.)
Consumption
3.2/3.30W (Typ./Max.)

LG Display LP156WFE-SPB1 Interface Details

Signal Systerm :
eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
145/182mA (Typ./Max.)
Consumption
0.48/0.6W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
KN38B-30S-0.5H
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LP156WFE-SPB1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI 300 cd/m² INDUSTRIAL LCD DISPLAY


Wholesale LP156WFE-SPB1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI 300 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

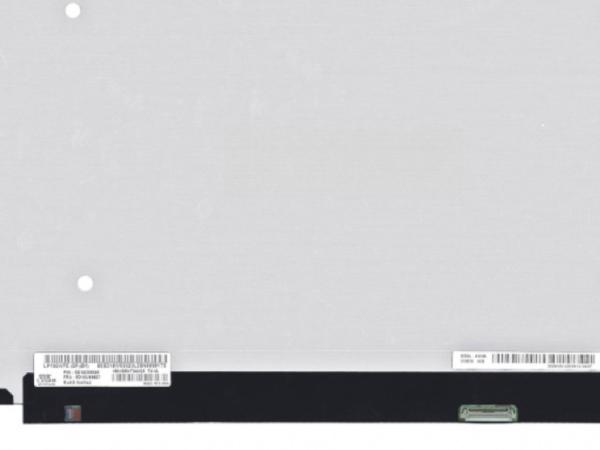

LP156WFE-SPB1 LG Display 15.6" 1920(RGB)×1080, FHD 141PPI 300 cd/m² INDUSTRIAL LCD DISPLAY Images
