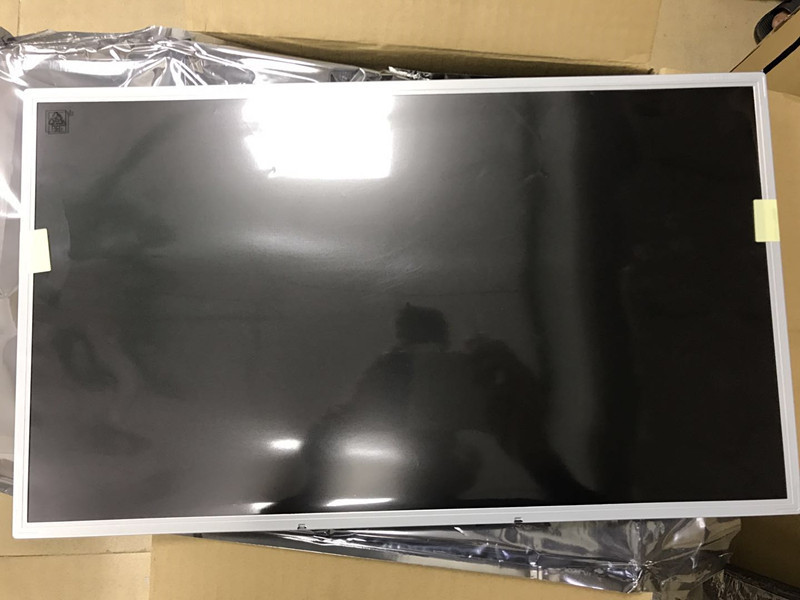

FHD 95PPI 1920×1080 250nits Industrial LCD Panel M230HCJ-L3N Rev.C1

Name: FHD 95PPI 19201080 250nits Industrial LCD Panel M230HCJL3N RevC1
Brand: INNOLUX
Price: 1 USD

Wholesale FHD 95PPI 1920×1080 250nits Industrial LCD Panel M230HCJ-L3N Rev.C1 from china suppliers

Brand Name : INNOLUX

Model Number : M230HCJ-L3N Rev.C1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : M230HCJ-L3N Rev.C1

BRAND : INNOLUX

SIZE : 23.0INCH

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080, FHD, 95PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

Innolux M230HCJ-L3N Rev.C1 Application Details

Basic Info :	Panel Brand M230HCJ-L3N Rev.C1Panel Model Diagonal Size 23.0" Application a-Si TFT-LCD , LCMPanel Type Model Alias -
Reliability :	Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C RoHS State -Vibration Rating

Innolux M230HCJ-L3N Rev.C1 Mechanical Details

Pixel Features :	Pixel Format 1920(RGB)×1080, FHD Dot Pitch 0.0884×0.2652 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.2652×0.2652 mm (H×V) [95PPI]
Mechanical Size :	Display Area 509.184×286.416 mm (H×V) Bezel Area 512.38×289.62 mm (H×V) Outline Dim. 522.38×305.62 mm (H×V) Outline Depth 12.78 (Typ.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 16:9 (H:V) Shape Style Normal bezel
Holes & Brackets :	Rear mounting holes (7-M3)
Other Features :	Weight 1.96/2.06/2.23Kgs (Min./Typ./Max.) Surface Antiglare (Haze 25%), Hard coating (3H)

Innolux M230HCJ-L3N Rev.C1 Optical Details

Basic Information :	Brightness 250 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode AAS, Normally Black, Transmissive Viewing Direction Symmetry Response Time 8/7 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.7M (8-bit) Color Temperature 6485K Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 75% sRGB 94% coverage Adobe RGB 73% coverage DCI-P3 78% coverage Rec.2020 56% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Innolux M230HCJ-L3N Rev.C1 Backlight Details

Back-light Features :	Lamp Type WLED Amount 4 strings Life Time - Replacement - Lamp Shape 4 strings Position Edge light type (Bottom side)
Lamp Electrical :	Voltage Input 31/34V (Typ./Max.3 Current Input 100/106mA (Typ./Max.) Consumption 12.4/13.2W (Typ./Max.)
Interface Features :	Type Connector Position NoLamp Driver
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration CviLux CI1406M1VL0-NH 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC

Innolux M230HCJ-L3N Rev.C1 Interface Detail

Signal Systerm :	LVDS (2 ch, 8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 5.0V (Typ.) Current Input 470/510mA (Typ./Max.) Consumption 3.45/4.05W (Typ./Max.)
Interface Features :	Type Connector Position
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration STARCONN 093G30-B0001A 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160A

Innolux M230HCJ-L3N Rev.C1 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	13 pcs / box	29.1 Kgs	620×348×390 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
