M200FGE-L20 CHIMEI Innolux 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : INNOLUX

Model Number : M200FGE-L20

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : M200FGE-L20

BRAND : INNOLUX

SIZE : 20.0INCH

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1600(RGB)×900, HD+, 91PPI

VIEWING ANGLEG : 85/85/80/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

Chimei Innolux M200FGE-L20 Application Details

Basic Information :
Brand

M200FGE-L20Model
Type
a-Si TFT-LCD , LCM
Used For

20.0 inchScreen Size
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

1.5G (14.7 m/s²)Vibration

Chimei Innolux M200FGE-L20 Mechanical Details

Pixel Features :
Resolution
1600(RGB)×900, HD+
Dot Pitch(mm)
0.09225×0.27675 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.27675×0.27675 (H×V) [91PPI]
Mechanical Size :
Active Area(mm)
442.8(H) × 249.075(V)
Bezel Area(mm)
446.8(H) × 253.2(V)
Outline Dim.(mm)
462.8(H) × 272(V)
Depth(mm)
11.0 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Normal bezel
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on up, down bezel
Other Spec :
Weight
1.63/1.80Kgs (Typ./Max.)
Treatment
Antiglare (Haze 25%), Hard coating (3H)

Chimei Innolux M200FGE-L20 Optical Details

Basic Information :
Luminance(cd/m²)
250 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
1.5/3.5 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
93% coverage
Adobe RGB
72% coverage
DCI-P3
76% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux M200FGE-L20 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No
Total Consumption:
14.84W (Max.)

Chimei Innolux M200FGE-L20 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
0.8/1.2A (Typ./Max.)
Consumption
6.0W (Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
FOXCONN
GS23302-0311R-7H
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A

Chimei Innolux M200FGE-L20 Backlight Details

Backlight Features :
Type
WLED
Quantity
10S4P
Position
Edge light type (Right side)
Replacement
-
Shape
4 strings
Life Time
50K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
31.0/69.0V (Typ./Max.)
Current Supply
65/69mA (Typ./Max.)
Consumption
8.06/8.84W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
FCN
WM13-406-063N
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No

Chimei Innolux M200FGE-L20 Packing Details

Package Box : Quantity Weight Box Size
12 pcs / box 23.1 Kgs 540×380×355 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

M200FGE-L20 CHIMEI Innolux 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAYM200FGE-L20 CHIMEI Innolux 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

WVGA TFT LCD Panel



TFT LCD Panel LVDS



Symmetry TFT LCD Panel


Wholesale M200FGE-L20 CHIMEI Innolux 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

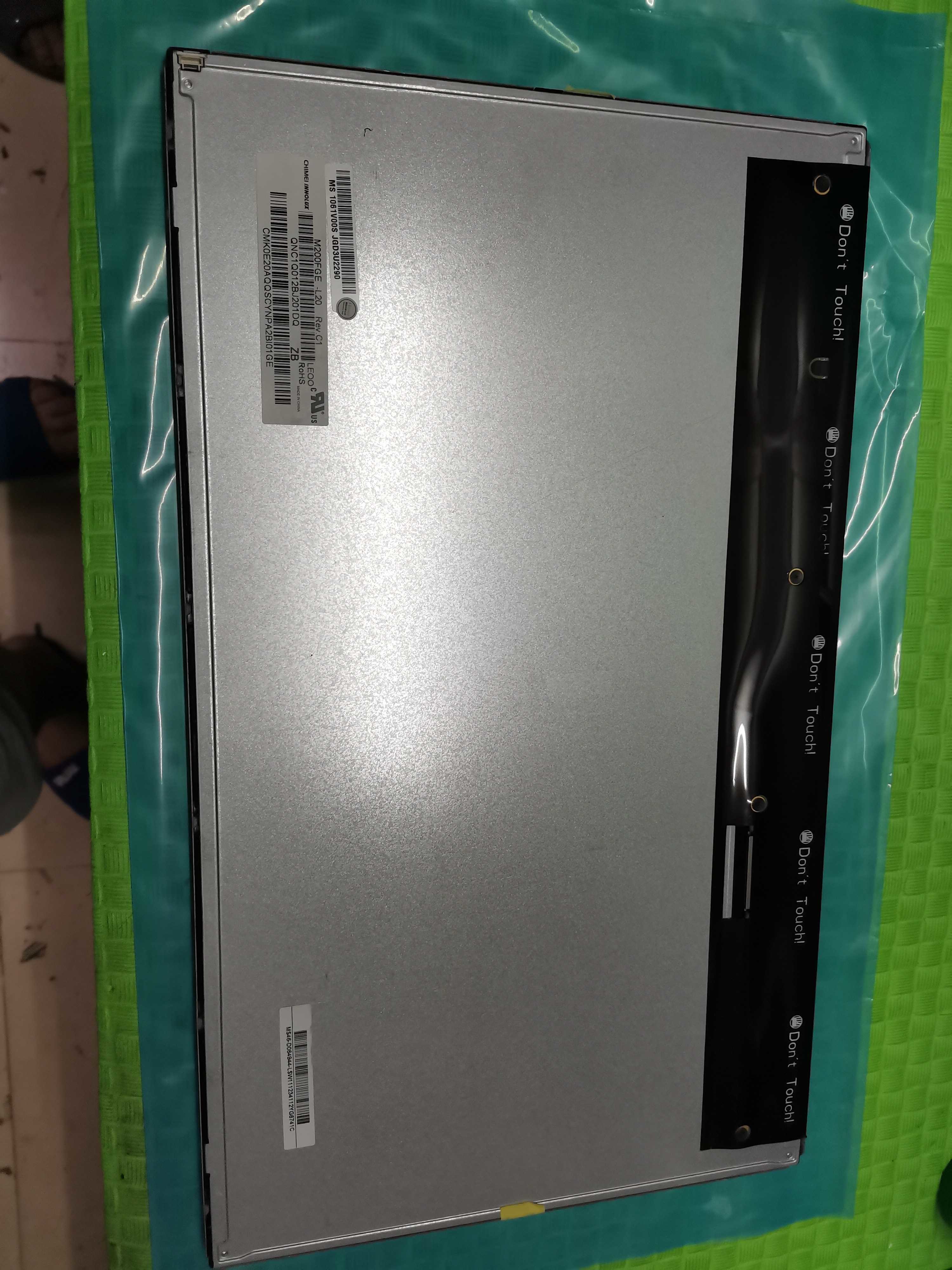

M200FGE-L20 CHIMEI Innolux 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY Images
