LQ038 Series LQ038Q7DB03R LQ038Q7DB03
Sharp LQ038Q7DB03 Application Details
| Basic Info : | Panel Brand | SHARP | Panel Model | LQ038Q7DB03 |
| Diagonal Size | 3.8" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -25 ~ 70 °C |
| RoHS State | | Vibration Rating | - |
Sharp LQ038Q7DB03 Mechanical Details
| Pixel Features : | Pixel Format | 240(RGB)×320 [QVGA] | Dot Pitch | 0.080×0.240 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.240×0.240 mm (H×V) [105PPI] |
| Mechanical Size : | Display Area | 57.6×76.8 mm (H×V) | Bezel Area | 61.2×80.4 mm (H×V) |
| Outline Dim. | 69×88.6 mm (H×V) | Outline Depth | 3.4±0.25 mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 3:4 (H:V) | Shape Style | |
| Other Features : | Weight | 42.0g (Typ.) | Surface | Hard coating (3H) |
Sharp LQ038Q7DB03 Optical Details
| Basic Information : | Brightness | 90 cd/m² (Typ.) | Contrast Ratio | 75:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective) |
| Viewing Angle | 40/40/40/40 (Typ.)(CR≥2) | Optical Mode | TN, Normally White, Transflective |
| Viewing Direction | 6 o'clock | Response Time | 30/50 (Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.320 | Color Numbers | 262K (6-bit) |
| Color Temperature | 7351K | White Uniformity | 1.17/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 18% | sRGB | 24% coverage |
| Adobe RGB | 18% coverage | DCI-P3 | 18% coverage |
| Rec.2020 | 13% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| 3D Type | - | Reflectance | 7/11% (Min./Typ.) |
Sharp LQ038Q7DB03 Backlight Details
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 10K(Typ.) (Hours) |
| Replacement | - | Amount | - | Position | Edge light type |
| Lamp Electrical : | Voltage Input | 32.4/36.0V (Typ./Max.) | Current Input | 15/20mA (Typ./Max.) |
| Consumption | 486/720mW (Typ./Max.) |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
Sharp LQ038Q7DB03 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 5.0/3.3/15.0/-15.0V (Typ.)(VSHA/VSHD/VDD/VSS) | Current Input | 5.0/1.8/0.05/-0.03mA (Typ.)(ISHA/ISHD/IDD/IEE) |
| Consumption | 33mW (Typ.) |
| Interface Features : | Type | FPC | Position | - | |
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| | | | 61 pins | 1 pcs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

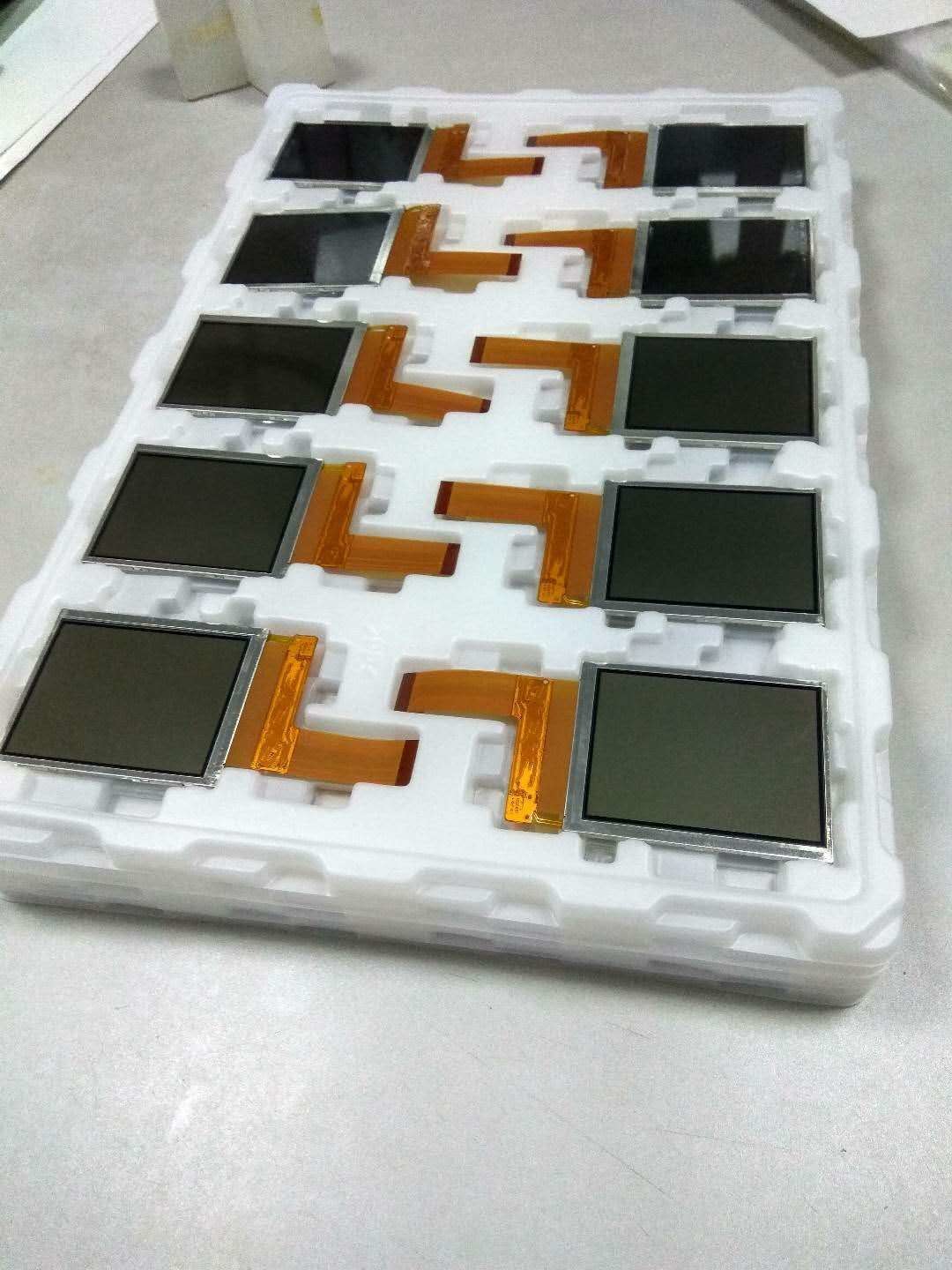

LQ038Q7DB03 Sharp 3.8" LCM 240×320RGB 90cd/m² INDUSTRIAL LCD DISPLAY Images
|
