LQ133 Series LQ133M1JW23 LQ133M1JW21 LQ133M1JW15 LQ133M1JW07
Sharp LQ133M1JW07 Optical Details
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ133M1JW07 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.051×0.153 mm | Pixel Pitch(W×H) | 0.153×0.153 mm [166PPI] |
| Physical Size : | Active Viewing | 293.76(W)×165.24(H) mm | Overall Dim. | 305.35(W)×187.86(H) mm |
| Bezel Opening | - | Overall Depth | 2.85/3.0 (Typ./Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Fixation : | Without |
| Other Detail : | Mass | 270/290g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Sharp LQ133M1JW07 Interface Details
| Signal Electrical : | Input Current | 180/300mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.594W (Typ.) | Signal Interface | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) |
| Interface Features : | Position | | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20455-030E-12 | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020A |
Sharp LQ133M1JW07 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
| Exchange | - | Amount | - | Life | 10K(Typ.) (Hours) |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | 300/540mA (Typ./Max.) | Input Voltage | 7.0/12.0/21.0V (Min./Typ./Max.) |
| Consumption | 3.6W (Typ.) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

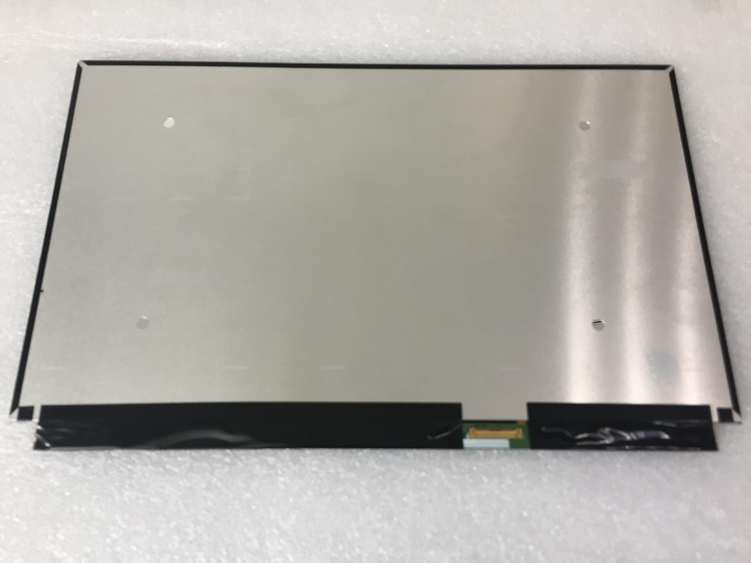

13.3" LCM 1920×1080RGB 300cd/m² LQ133M1JW07 Sharp TFT LCD Display Images
|
