LQ133 Series LQ133T1JX03 LQ133T1JW23 LQ133T1JW19 LQ133T1JW17 LQ133T1JW02 LQ133T1JW01
Sharp LQ133T1JW01 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 300 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) |
| Best View on | Display Mode | Contrast Ratio |
| Symmetry | VA, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 100% | 74% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.30/1.50 (Typ./Max.)(5 points) |
Sharp LQ133T1JW01 Mechanical Features
| Panel Size : | 13.3" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2560(RGB)×1440 [Quad-HD] | RGB Vertical Stripe | 0.11475×0.11475 [221PPI] | 0.03825×0.11475 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 293.76(H) × 165.24(V) | - | 305.35(H) × 187.9(V) | 2.80±0.25 mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Slim (PCBA Flat, T≤3.2mm) |
| Mounting : | Without |
| Other Detail : | Weight | Panel Cover | Treatment |
| 195±15g | - | Glare (Haze 0%), Hard coating (2H) |
Sharp LQ133T1JW01 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| WLED | Edge light type | - | - | 10K(Typ.) | - |
| Interface Features : | Position | Backlight Driver | Type |
| - | With LED Driver | Included in panel signal interface |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption |
| 7.0/12.0/21.0V (Min./Typ./Max.) | 396/740mA (Typ./Max.) | 4.75W (Typ.) |
Sharp LQ133T1JW01 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 3.3V (Typ.) | 420/900mA (Typ./Max.) | 1.39W (Typ.) |
| Interface Features : | Position | Signal | Type |
| | eDP (4 Lanes) | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | HD1S040HA1 | 0.5 mm | 40 pins | 1 pcs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

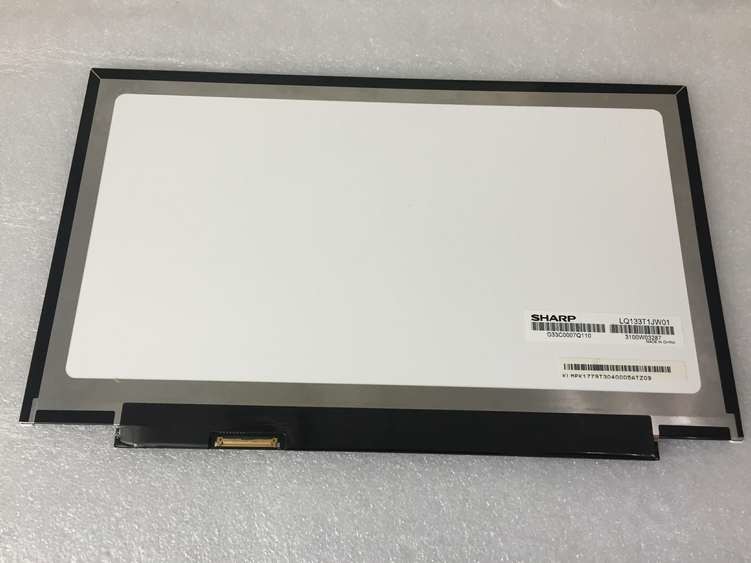

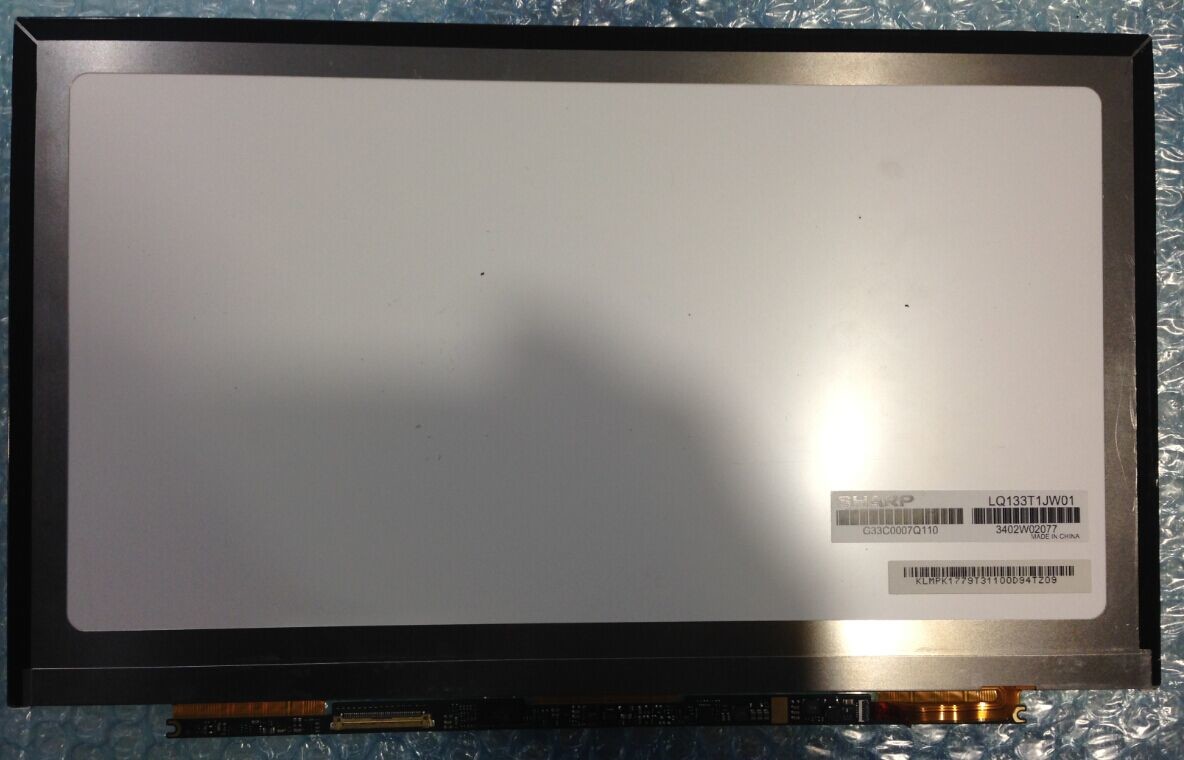

LQ133T1JW01 Sharp 13.3" LCM 2560×1440RGB 300cd/m² INDUSTRIAL LCD DISPLAY Images
|
