Sharp LQ133T1JX03 Summary
LQ133T1JX03 supports display
2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, shape stype of Slim (PCBA Flat, T≤3.2mm). As a VA, Normally Black, Transmissive LCM product, LQ133T1JX03 can provides 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LQ133T1JX03 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with Sharp or it's distributor. The above parameters are not from the datasheet, only as a reference, please use with caution!
Sharp LQ133T1JX03 Mechanical Details
| Pixel Features : | Pixel Format | 2560(RGB)×1440 [Quad-HD] | Dot Pitch | 0.03825×0.11475 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.11475×0.11475 mm (H×V) [221PPI] |
| Mechanical Size : | Display Area | 293.76×165.24 mm (H×V) | Bezel Area | - |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) |
Sharp LQ133T1JX03 Optical Details
| Basic Information : | Brightness | - | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | VA, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.30/1.50 (Typ./Max.)(5 points) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

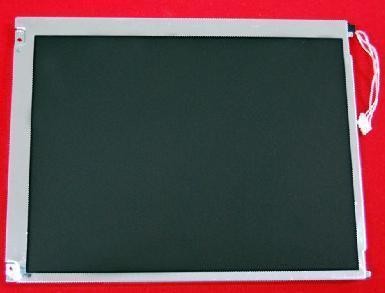

LQ133T1JX03 Sharp 13.3" LCM 2560×1440RGB INDUSTRIAL LCD DISPLAY Images
|
