LQ150 Series LQ150X1LG92 LQ150X1LG91 LQ150X1LG83 LQ150X1LG82
Sharp LQ150X1LG82 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 550 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 2/6 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.330; Wy:0.351 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 5596K | White Uniformity | 1.25 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 69% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ150X1LG82 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 326(W)×252(H) mm |
| Bezel Opening | 308.1(W)×232.1(H) mm | Overall Depth | 13.7±0.5 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Mass | 1.20Kgs (Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
Sharp LQ150X1LG82 Interface Details
| Signal Electrical : | Input Current | 350/450mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF14H-20P-1.25H | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010G |
Sharp LQ150X1LG82 Lightting Details
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
| Exchange | - | Amount | 10S3P | Life | 50K(Typ.) (Hours) |
| Lamp Electrical : | Input Current | 100/105mA (Typ./Max.) | Input Voltage | 32V (Typ.) |
| Consumption | 9.6W (Typ.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 501568-0607 | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-AAACCC |
| Backlight Driver : | No |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

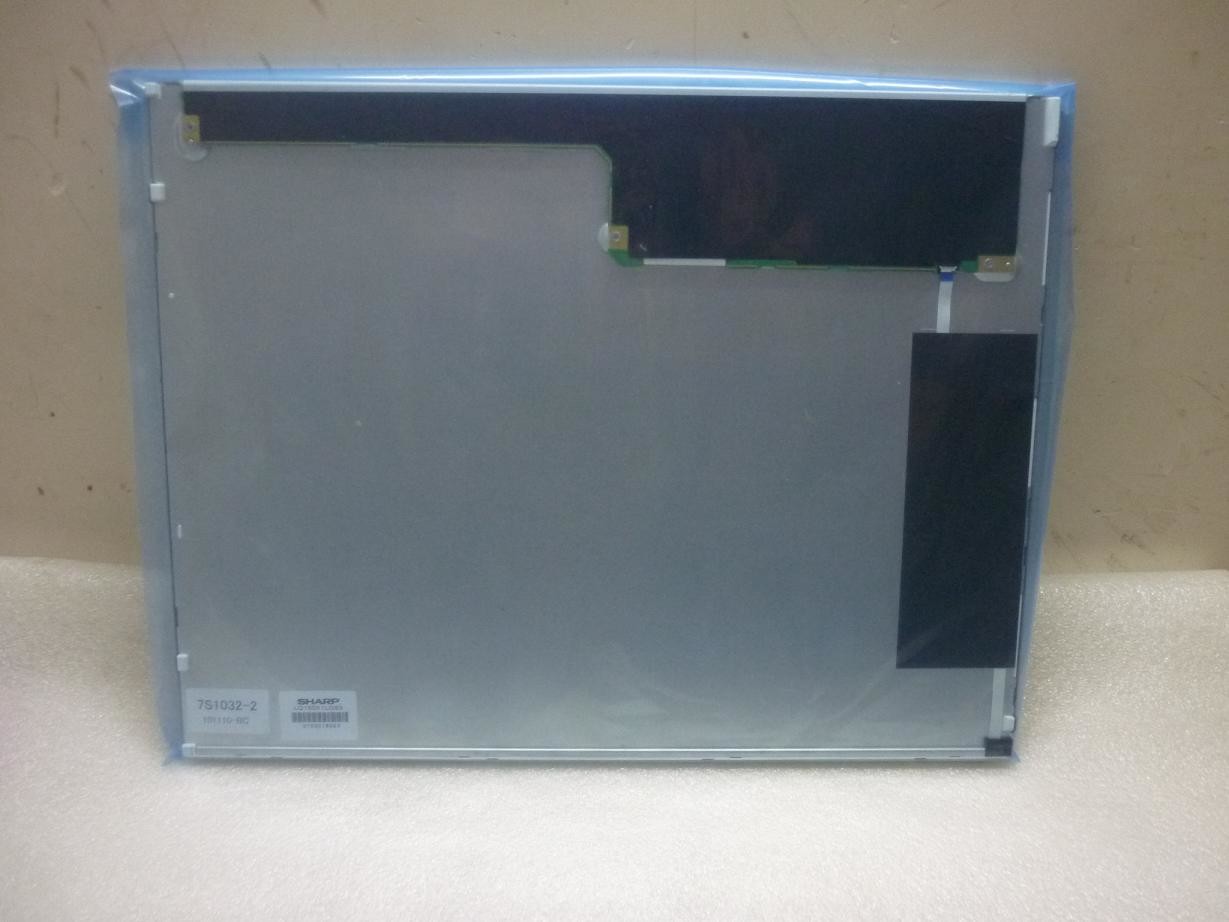

15" LCM 1024×768RGB 350cd/m² LQ150X1LG82 Sharp TFT LCD Display Images
|
