LQ092B5DW02 Sharp 9.2" LCM 960×160RGB 1050cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : SHARP

Model Number : LQ092B5DW02

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : 30 pcs / box 6.6 Kgs 573×373×203 mm (L×W×H)

Manufacturer : Sharp

Model Name : LQ092B5DW02

Screen Size : 9.2 inch

Luminance : 1050 (Typ.)(cd/m²)

Backlight : 6S4P WLED , 10K hours , No Driver

Signal Type : Parallel RGB (1 ch, 6-bit) , 50 pins FPC

Pixel Number : 960(RGB)×160 105PPI

Max. Ratings : Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 70 °C ; Vibration Level: 3.0G (29.4 m/s²)

Contact Now

Sharp LQ092B5DW02 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
1050 (Typ.) 45/45/40/40(Typ.)(CR≥100) 8/6 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
- ASV, Normally Black, Transmissive 1000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
7033K 262K (6-bit) X:0.304; Y:0.325
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
58% 80% 59%
DCI-P3 Coverage Rec.2020 Coverage Remarks
61% 43% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.35/1.40 (Typ./Max.)(9 points)
Performance : 3D Tech Sunlight Visibility Reflectance
- Sunlight Readable -

Sharp LQ092B5DW02 Mechanical Features

Panel Size : 9.2"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
960(RGB)×160 RGB Vertical Stripe 0.240×0.240 [105PPI] 0.080×0.240
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
230.4(H) × 38.4(V) 234.6(H) × 42.6(V) 242(H) × 52.83(V) 8.3/10.8 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type >3:1 (H:V)
Mounting : Rear mounting Pole (3-Φ2)
Other Detail : Weight Panel Cover Treatment
170±10g - Antiglare

Sharp LQ092B5DW02 Electronics Features

Reverse Scan : Yes (L/R)
Vertical Frequency : 60Hz
Time Controller (T-CON) : Embedded T-CON

Sharp LQ092B5DW02 Backlight Features

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type 6S4P 4 strings 10K(Min.) -
WLED Electrical : Voltage Supply Current Supply Power
18.9/20.4V (Typ./Max.) 60/65mA (Typ./Max.) 4.54W (Typ.)
Interface Features : Position Backlight Driver Type
- No FPC
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
0.5 mm 10 pins 1 pcs

Sharp LQ092B5DW02 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3/13.4/25.0/-8.0V (Typ.)(VSHD/VSHA/VGH/VGL) 8.0/23.0/0.4/0.4mA (Typ.)(ISHD/ISHA/IGH/IGL) -
Interface Features : Position Signal Type
- Parallel RGB (1 ch, 6-bit) FPC
FPC Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
0.5 mm 50 pins 1 pcs

LQ092B5DW02 supports display 960(RGB)×160 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 230.4(W)×38.4(H) mm, outline size of 242(W)×52.83(H)×10.8(D) mm, viewing area size of 234.6(W)×42.6(H) mm, with surface treament of Antiglare, net weight of 170±10g. As a ASV, Normally Black, Transmissive LCM product, LQ092B5DW02 can provides 1050 cd/m² display brightness 1000:1 transimissive contrast ratio, 45/45/40/40(Typ.)(CR≥100) (L/R/U/D) viewing angle , and response time of 8/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 58% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.

LQ092B5DW02 Sharp 9.2" LCM 960×160RGB 1050cd/m² INDUSTRIAL LCD DISPLAYLQ092B5DW02 Sharp 9.2" LCM 960×160RGB 1050cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

CCFL LVDS Industrial LCD Panel



CCFL NEC TFT Panel


Wholesale LQ092B5DW02 Sharp 9.2" LCM 960×160RGB 1050cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

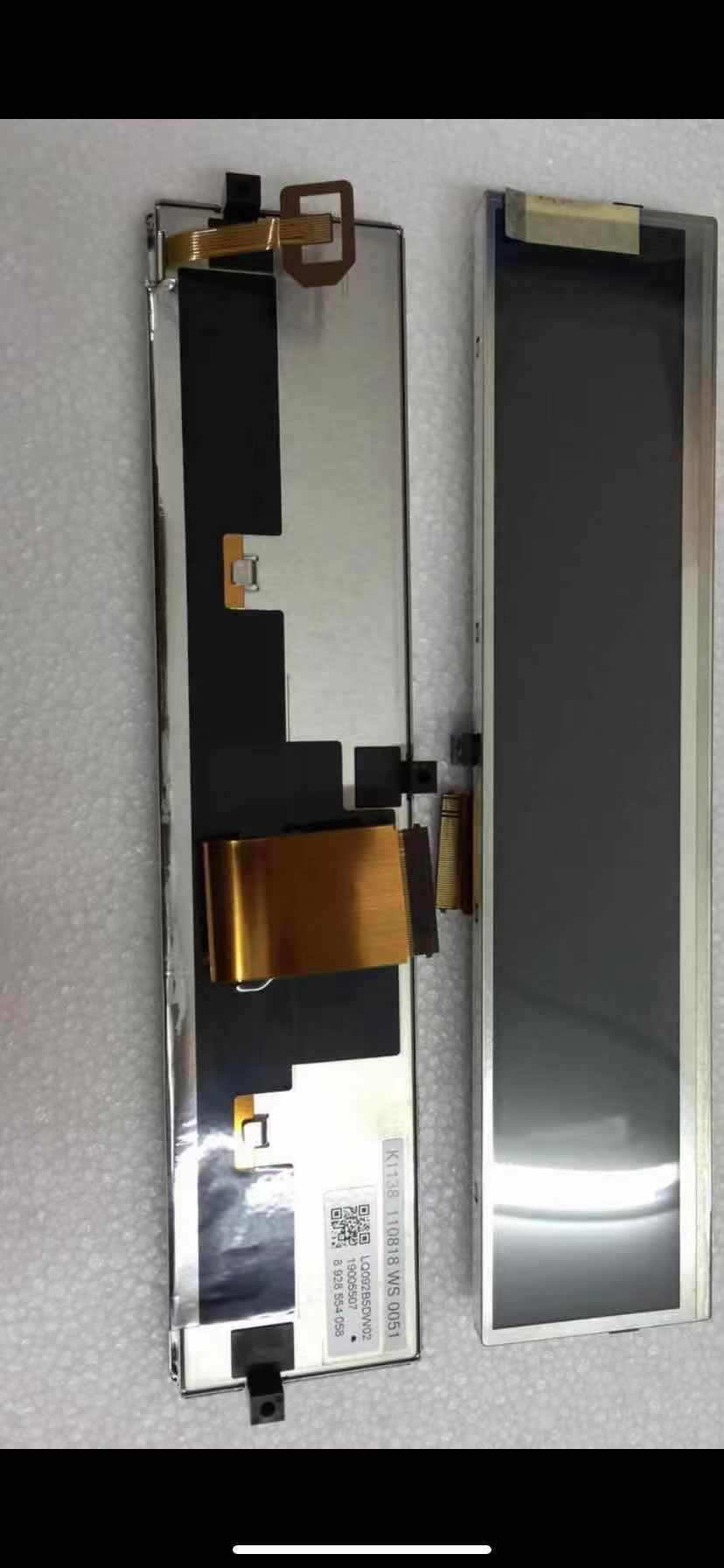

LQ092B5DW02 Sharp 9.2" LCM 960×160RGB 1050cd/m² INDUSTRIAL LCD DISPLAY Images
