Sharp LQ110Y3DG01 Application Details
| Basic Info : | Panel Brand | | Panel Model | LQ110Y3DG01 |
| Diagonal Size | 11.0" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
| Reliability : | Operating Temp. | 0 ~ 75 °C | Storage Temp. | -25 ~ 75 °C |
| RoHS State | | Vibration Rating | - |
Sharp LQ110Y3DG01 Mechanical Details
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.100×0.300 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.300×0.300 mm (H×V) [84PPI] |
| Mechanical Size : | Display Area | 240×144 mm (H×V) | Bezel Area | - |
| Outline Dim. | 266×169 mm (H×V) | Outline Depth | 19.5 (Typ.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | |
| Other Features : | Weight | 700g (Max.) | Surface | Antiglare |
Sharp LQ110Y3DG01 Optical Details
| Basic Information : | Brightness | 380 cd/m² (Typ.) | Contrast Ratio | 250:1 (Typ.) (Transmissive) |
| Viewing Angle | 65/65/55/65 (Typ.)(CR≥5) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | 6 o'clock | Response Time | 30/50 (Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
Sharp LQ110Y3DG01 Electronics Details
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Embedded T-CON |
Sharp LQ110Y3DG01 Backlight Details
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 15K(Min.) (Hours) |
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Top and Bottom) |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With Inverter |
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input |
Sharp LQ110Y3DG01 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | VIL≤0.9V; 2.5V≤VIH≤3.6V |
| Signal Electrical : | Voltage Input | 5.0V (Typ.)(VCC) | Current Input | - |
| Interface Features : | Type | Connector | Position | - | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| Yazaki | 7325-2489 | 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C6B-280A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 240(W)×144(H) mm, outline size of 266(W)×169(H) mm, with surface treament of Antiglare, net weight of 700g (Max.). As a TN, Normally White, Transmissive LCM product, LQ110Y3DG01 can provides 380 cd/m² display brightness 250:1 transimissive contrast ratio, 65/65/55/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 15K hours, With Inverter. LQ110Y3DG01 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm,
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

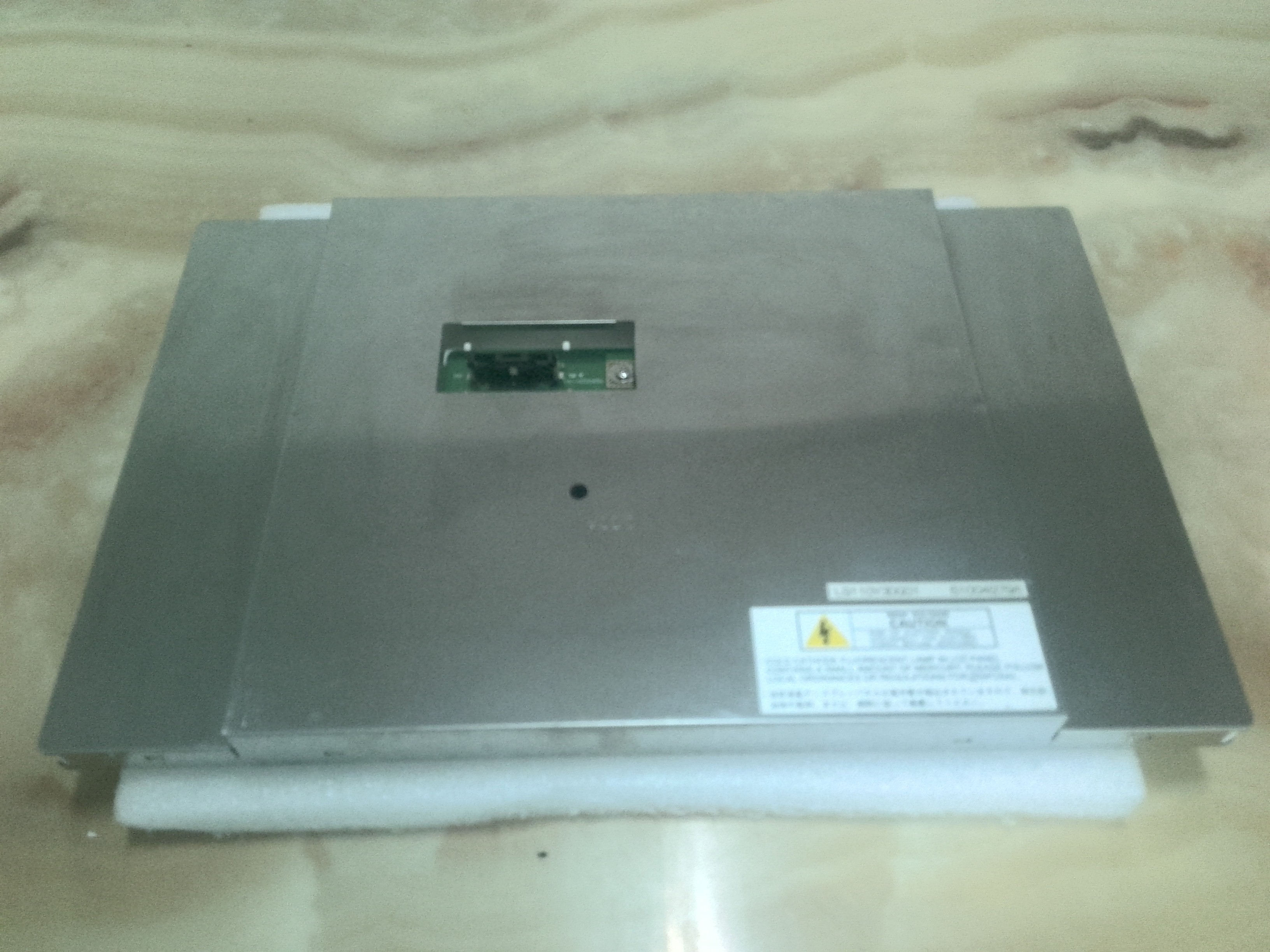

11Inch LCM 800×480RGB 380cd/m² LQ110Y3DG01 Sharp TFT LCD Display Images
|
