TIANMA TM120GDSP01 Application Details
| Basic Info : | Panel Brand | | Panel Model | TM120GDSP01 |
| Diagonal Size | 12.0" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
TIANMA TM120GDSP01 Mechanical Details
| Pixel Features : | Pixel Format | 2160(RGB)×1440 | Dot Pitch | 0.0392×0.1176 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1176×0.1176 mm (H×V) [215PPI] |
| Mechanical Size : | Display Area | 254.016×169.344 mm (H×V) | Bezel Area | - |
| Outline Dim. | 262.416×179.544 mm (H×V) | Outline Depth | 2.15/4.25 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:10 (H:V) | Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Holes & Brackets : | Without |
| Other Features : | Weight | TBD | Surface | Hard coating |
TIANMA TM120GDSP01 Optical Details
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.297; Wy:0.313 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 7678K | White Uniformity | - |
| 1931 Color Gamut : | NTSC Ratio | 85% | sRGB | 99% coverage |
| Adobe RGB | 85% coverage | DCI-P3 | 88% coverage |
| Rec.2020 | 64% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM120GDSP01 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 4.25W (Typ.) |
TIANMA TM120GDSP01 Backlight Details
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | - |
| Replacement | - | Amount | 9S6P | Position | Edge light type |
| Lamp Electrical : | Voltage Input | 28.8V (Typ.) | Current Input | 20mA (Typ.) |
| Consumption | 3.4W (Typ.) |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | No |
TIANMA TM120GDSP01 Interface Details
| Signal Systerm : | eDP (4 Lanes), eDP1.3 | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - |
| Consumption | 850mW (Typ.) |
| Interface Features : | Type | Connector | Position | | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20655-040E-01 | 0.3 mm | 40 pins | 1 pcs |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 254.016(W)×169.344(H) mm, outline size of 262.416(W)×179.544(H)×4.25(D) mm, with surface treament of Hard coating, net weight of TBD, shape stype of Slim (PCBA Bent, T≤3.0mm). As a SFT, Normally Black, Transmissive LCM product, TM120GDSP01 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 85% (NTSC). This product adopted 9S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM120GDSP01 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
Product Tags:
|
|

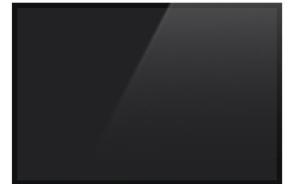

TM120GDSP01 TIANMA 12.0" 2160(RGB)×1440 450 cd/m² INDUSTRIAL LCD DISPLAY Images
|
