LQ190N1LW01 Sharp 19" LCM 1680×1050RGB 300cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : Sharp

Model Number : LQ190N1LW01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 300PCS

Delivery Time : 1-2DAYS

Packaging Details : 5 pcs / box 10 Kgs 502×258×360 mm (L×W×H)

Panel Size : 19"

Resolution : 1680(RGB)×1050, WSXGA+, 104PPI

Model : LQ190N1LW01

Outline Size : 444(W)×283.3(H) ×16(D) mm

Bezel Opening : 413.9(W)×260.3(H) mm

Brightness : 300 cd/m² (Typ.)

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Lamp Type : WLED , 70K hours , With LED Driver

Signal Interface : LVDS (2 ch, 8-bit) , 30 pins Connector

Environment : Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

Sharp LQ190N1LW01 Application Features

Basic Information : Brand Model Type Model Alias
SHARP LQ190N1LW01 a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
0 ~ 60 °C -20 ~ 60 °C -

Sharp LQ190N1LW01 Mechanical Features

Panel Size : 19.0 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1680(RGB)×1050, WSXGA+ RGB Vertical Stripe 0.08125×0.24375 mm 0.24375×0.24375 mm [104PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
409.5×255.94 mm 413.9×260.3 mm 444×283.3 mm 15.5±0.5 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:10 (W : H) Landscape type
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Features : Panel Cover Weight Surface
- 1.60Kgs (Max.) Antiglare, Hard coating (3H)

Sharp LQ190N1LW01 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
300 cd/m² (Typ.) VA, Normally Black, Transmissive 900:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
85/85/85/85 (Typ.)(CR≥10) Symmetry 35 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
7351K 16.7M (8-bit) X:0.300; Y:0.320
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
71% 90% 73%
DCI-P3 Coverage Rec.2020 Coverage Remarks
73% 53% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.43 (Max.)(5 points)

Sharp LQ190N1LW01 Electronics Features

Power Consumption : 20.2W
Frame Rate : 60Hz
Reverse Scan : No

Sharp LQ190N1LW01 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
280/660mA (Typ./Max.) 12.0V (Typ.) -
Interface Features : Position Type Interface
Connector LVDS (2 ch, 8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
HRS MDF76GW-30S-1H 1 pcs 1.0 mm 30 pins LVDS-30P2C8B-160A

Sharp LQ190N1LW01 Backlight Features

Backlight Features: Type Position Shape Amount Life(Hours) Replacement
WLED Edge light type - - 70K(Typ.) Replaceable
Interface Features : Position Type WLED Driver
- Connector With LED Driver
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
JST SM10B-SHLS-TF 1 pcs 1.0 mm 10 pins
Driver Electrical : Current Input Voltage Input Consumption
1.4/1.9A (Typ./Max.) 12.0±1.2V -

LQ190N1LW01 Sharp 19" LCM 1680×1050RGB 300cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

LVDS TFT LCD Display



CCFL Sharp TFT LCD Display


Wholesale LQ190N1LW01 Sharp 19" LCM 1680×1050RGB 300cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

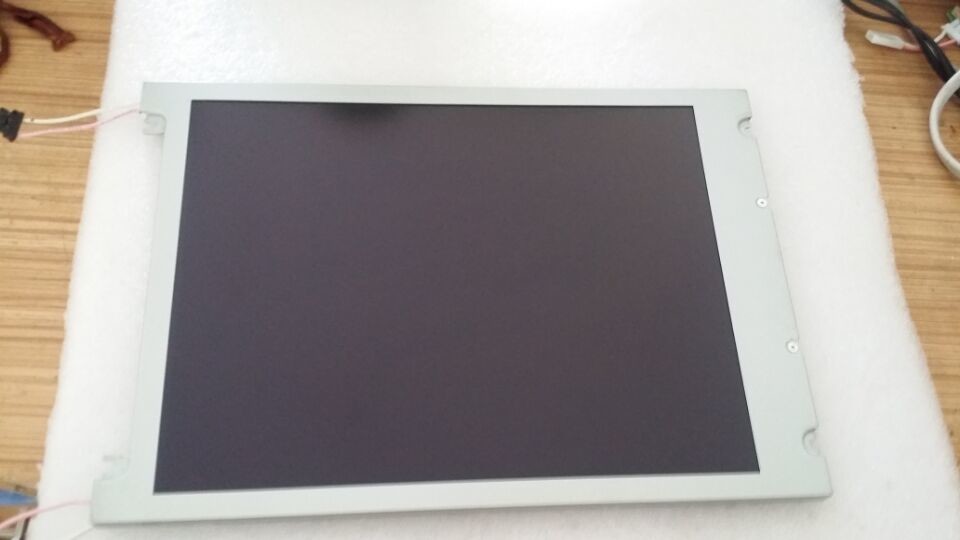

LQ190N1LW01 Sharp 19" LCM 1680×1050RGB 300cd/m² INDUSTRIAL LCD DISPLAY Images
