Sharp LQ185T1LGN2 Application Details
| Basic Detail : | Manufacturer SHARP
LQ185T1LGN2Model Name Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size Designed For |
| Maximum Ratings : | OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C RoHS
1.5G (14.7 m/s²)Vibration Level
|
Sharp LQ185T1LGN2 Optical Details
| Basic Detail : | Luminance 300 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at - Response Speed 1.5/3.5 (Typ.)(Tr/Td) ms Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive |
| Color Performance : | Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit) Color Temperature 6485K White Variation 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio 74% sRGB 94% coverage Adobe RGB 76% coverage DCI-P3 77% coverage Rec.2020 55% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ185T1LGN2 Mechanical Details
| Pixel Features : | Number of Pixel 1366(RGB)×768, WXGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.100×0.300 mm Pixel Pitch(W×H) 0.300×0.300 mm [84PPI] |
| Physical Size : | Active Viewing 409.8(W)×230.4(H) mm Overall Dim. 430.37(W)×254.6(H) mm Bezel Opening 413.4(W)×234.0(H) mm Overall Depth 11.8/16.5 (Typ./Max.) mm |
| Outline Features : | Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style Normal bezel |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Mass 2.10Kgs (Max.) Surface Antiglare (Haze 25%), Hard coating (3H) |
Sharp LQ185T1LGN2 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
Sharp LQ185T1LGN2 Interface Detail
| Signal Electrical : | Input Current 700/1000mA (Typ./Max.) Input Voltage 5.0V (Typ.) Consumption - Signal Interface LVDS (1 ch, 8-bit) |
| Interface Features : | Position - Type Connector |
| Interface Detail : | Brand Model Pitch Pins Amount Pin Assignment JAE 1.0 mm 30 pins 1 pcs LVDS-30P1C8B-170A |
Sharp LQ185T1LGN2 Lightting Details
| Lamp Features : | Lamp Type CCFL Amount 2 pcs Position Edge light type (Top and Bottom) Exchange - Lamp Shape Straight Lamp Life 50K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage 630/700/770V (Min./Typ./Max.) Input Current 2.0/7.5/8.0mA (Min./Typ./Max.) Frequency 40/60KHz (Min./Max.) Turn-on Voltage 1300/1700V (Min.)(Ta=+25/0℃) |
| Interface Features : | Position - Type Connector |
| Interface Detail : | Brand Model Pitch Pins Amount Pin Assignment YEONHO 3.5 mm 2 pins 2 pcs BLL-2PINS-HL |
| Backlight Driver : | No |
LQ185T1LGN2 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 409.8(W)×230.4(H) mm, outline size of 430.37(W)×254.6(H)×16.5(D) mm, viewing area size of 413.4(W)×234.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.10Kgs (Max.). As a TN, Normally White, Transmissive LCM product, LQ185T1LGN2 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LQ185T1LGN2 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
Product Tags:
|
|

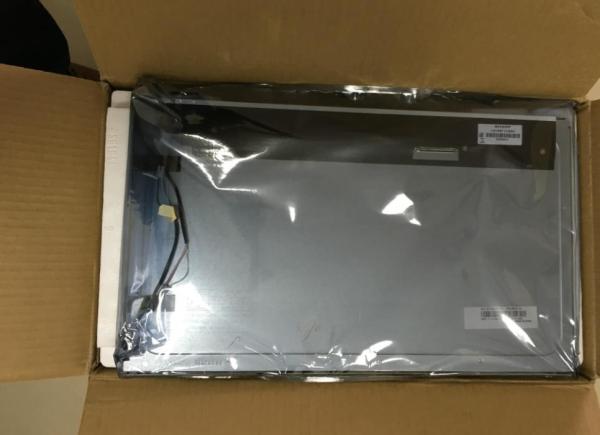

LQ185T1LGN2 Sharp 18.5" LCM 1366×768RGB 300cd/m² INDUSTRIAL LCD DISPLAY Images
|
