LQ64 Series LQ64D343R LQ64D343 LQ64D342 LQ64D341
Sharp LQ64D341 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
| SHARP | LQ64D341 | a-Si TFT-LCD , LCM | - |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | 0 ~ 55 °C | -25 ~ 70 °C | - |
Sharp LQ64D341 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 300 (Typ.) | 70/70/40/70 (Typ.)(CR≥5) | 20/40 (Typ.)(Tr/Td) |
| Best View on | Display Mode | Contrast Ratio |
| 6 o'clock | TN, Normally White, Transmissive | 100 : 1 (Min.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6518K | 262K (6-bit) | X:0.313; Y:0.325 |
| White Variation : | 1.45 (Max.)(5 points) |
Sharp LQ64D341 Mechanical Features
| Panel Size : | 6.4" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.204×0.202 [124PPI] | 0.068×0.202 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 130.56(H) × 96.96(V) | 136.2(H) × 100.0(V) | 175(H) × 126.5(V) | 12.0 (Typ.) mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | |
| Mounting : | Face mounting holes (4-Ф2.2) |
| Other Detail : | Weight | Panel Cover | Treatment |
| 290±20g | - | Hard coating (3H), Antireflection |
Sharp LQ64D341 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| CCFL | Edge light type (Top and Bottom) | 2 pcs | Straight | 50K(Typ.) | Replaceable (LQ0B197) |
| CCFL Electrical : | Voltage Supply | Current Supply | Power |
| 360V (Typ.) | 2.0/6.0/6.5mA (Min./Typ./Max.) | 4.32W (Typ.) |
| Operating Frequency | Kick-off Voltage |
| 20/35/60KHz (Min./Typ./Max.) | 800/1000V (Max.)(Ta=+25/0℃) |
| Interface Features : | Position | Backlight Driver | Type |
| - | No | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL |
Sharp LQ64D341 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 5.0V (Typ.)(VCC) | 250mA (Typ.)(ICC) | - |
| Voltage for Display Signals : | VIL≤0.3VCC; 0.7VCC≤VIH |
| Interface Features : | Position | Signal | Type |
| - | Parallel RGB (1 ch, 6-bit) | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF9BA-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010K |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

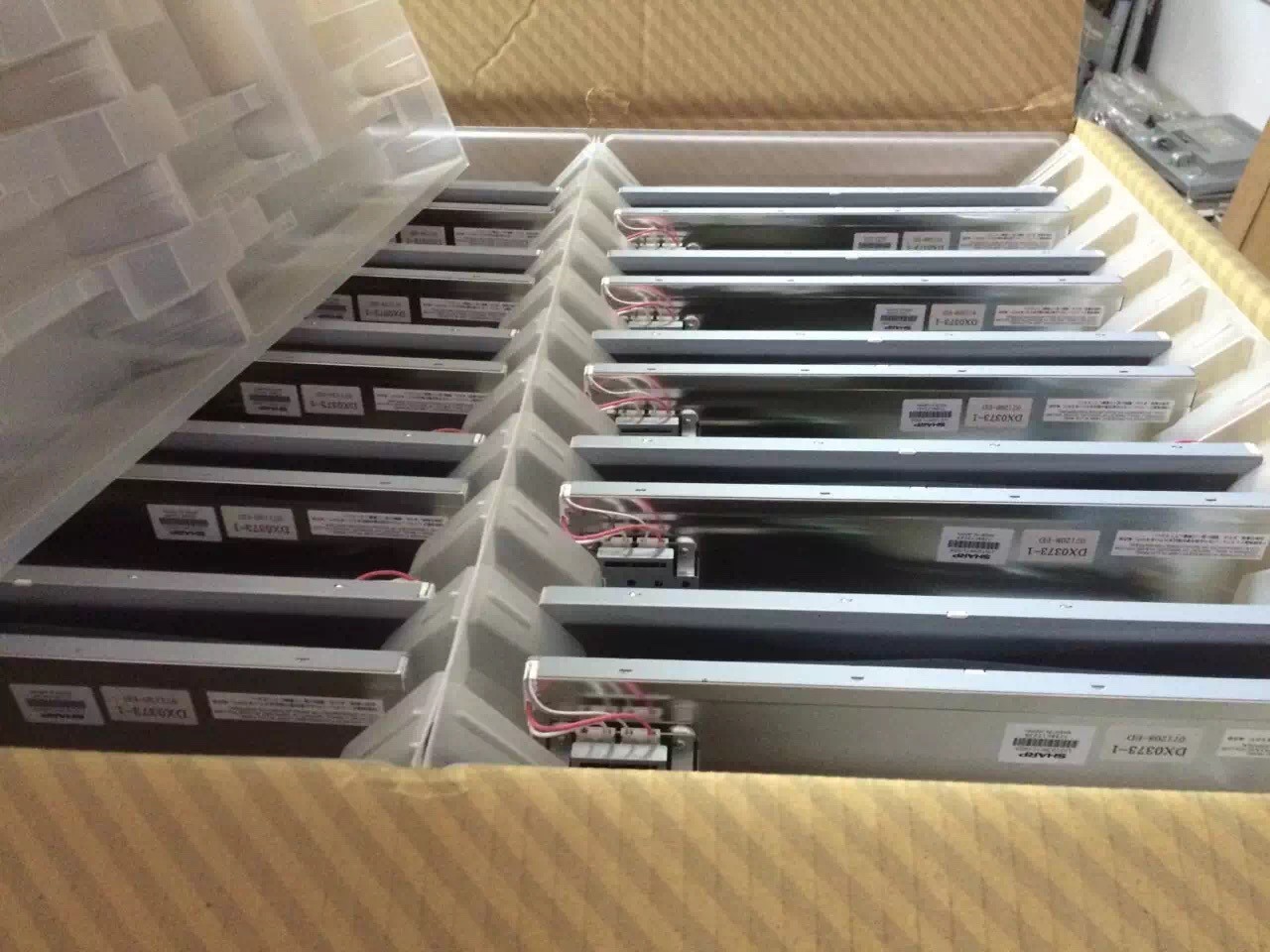

LQ64D341 Sharp 6.4" LCM 640×480RGB 300 cd/m² INDUSTRIAL LCD DISPLAY Images
|
