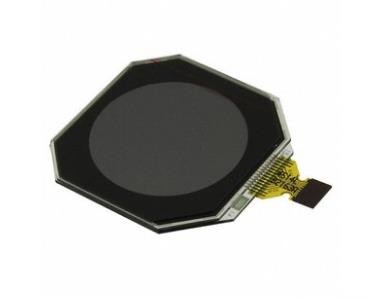

0.96INCH 128×128 133PPI LS010B7DH02 Sharp TFT LCD Display

  • 1
  • 2
  • 3

Brand Name : SHARP

Model Number : LS010B7DH02

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 2000PCS

Delivery Time : 1-2 DAYS

Packaging Details : 578×382×153 mm

Size : 0.96 inch

Type : CG-Silicon, LCM

Active Area : 24.384(H)×24.384(V) mm

Pixel Format : 128×128 133PPI

Viewing Angle : 40/40/60/60 (Min.)(CR≥3)

Configuration : Rectangle

Interface Type : SPI , 10 pins FPC

Environment : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C

Contact Now


LS010 Series LS010B7DH02 LS010B7DH01

Sharp LS010B7DH02 Optical Details

Basic Detail :
Luminance
-
Contrast Ratio
14:1 (Typ.) (Reflective)
Good View at
-
Response Speed
10/20 (Typ.)(Tr/Td) ms
Viewing Angle
40/40/60/60 (Min.)(CR≥3)
Operating Mode
TN, Normally White, Transflective
Color Performance :
Chromaticity
Wx:0.300; Wy:0.330
Support Color
Monochrome (1-bit)
Color Temperature
7203K
White Variation
-
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
0.25% (Typ.)(with Polarizer)
3D Tech
-
Reflectance
17% (Typ.)

Sharp LS010B7DH02 Mechanical Details

Pixel Features :
Number of Pixel
128×128
Arrangement
Rectangle
Dot Pitch(W×H)
-
Pixel Pitch(W×H)
0.1905×0.1905 mm [133PPI]
Physical Size :
Active Viewing
24.384(W)×24.384(H) mm
Overall Dim.
33(W)×33.4(H) mm
Bezel Opening
-
Overall Depth
1.64±0.2 mm
Outline Features :
Form Shape
Flat Circular
Orientation
Landscape type
Aspect Ratio(W:H)
1:1
Shape Style
Other Detail :
Mass
3.70g (Typ.)
Surface
Antiglare, Hard coating (3H)

Sharp LS010B7DH02 Interface Detail

Signal Electrical :
Input Current
-
Input Voltage
5.0/5.0V (Typ.)(VDD/VDDA)
Consumption
-
Signal Interface
SPI
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
10 pins
1 pcs
