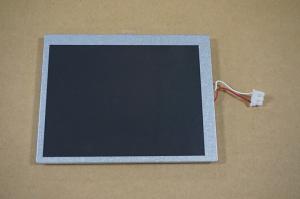

5.7in 640×480 640cd/M2 VGA 141PPI Industrial Lcd Display TX14D28VM5BPA

Brand Name : KOE

Model Number : TX14D28VM5BPA

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 300PCS

Delivery Time : 3 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TX14D28VM5BPA

BRAND : KOE

SIZE : 5.7INCH

RESOLUTION : 640(RGB)×480 (VGA) 141PPI

BRIGHTNESS : 640 cd/m² (Typ.)

TEMPERATURE RANGE : Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²

Contact Now

KOE TX14D28VM5BPA Overview

The TX14D28VM5BPA is a 5.7 inch diagonal a-Si TFT-LCD display panel product from Kaohsiung Opto-Electronics Inc. (hereafter called KOE), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).

KOE TX14D28VM5BPA Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		TX14D28VM5BPA	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-20 ~ 70 °C	-30 ~ 80 °C	2.0G (19.6 m/s²)
Designed For :
Specific Features :
Remarks :	IPS-Like, Lite+

KOE TX14D28VM5BPA Mechanical Features

Panel Size :	5.7 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.060×0.180 mm	0.180×0.180 mm [141PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	115.2×86.4 mm	-	131×102.2 mm	9.1±0.5 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Touchscreen :	Touch Points	TP Controller	Signal Type	Touch Tech
Touchscreen :	-	Without touch controller	-	4-wire Resistive Touch, F/G
Fixation :	Rear mounting hole (4-M2)
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	149g (Typ.)	Antiglare

KOE TX14D28VM5BPA Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	640 cd/m² (Typ.)	TN, Normally White, Transmissive	400:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	80/80/80/80 (Typ.)(CR≥10)	-	50 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6066K	262K (6-bit)	X:0.320; Y:0.340
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	50%	66%	51%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	51%	37%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.43 (Max.)(9 points)

KOE TX14D28VM5BPA Electronics Features

Power Consumption :	2.62W
Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)

KOE TX14D28VM5BPA Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	140/170mA (Typ./Max.)		3.3V (Typ.)			460mW (Typ.)
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	LVDS (1 ch, 6-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	JAE	FI-SEB20P-HF13E	1 pcs	1.25 mm	20 pins	LVDS-20P1C6B-005A

KOE TX14D28VM5BPA Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	Array	3S9P	40K(Typ.)	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	180mA (Typ.)		12.0±0.5V			2.16W (Typ.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	BHR-03VS-1	1 pcs	4.0 mm	3 pins	BLE-3PINS-ANC
