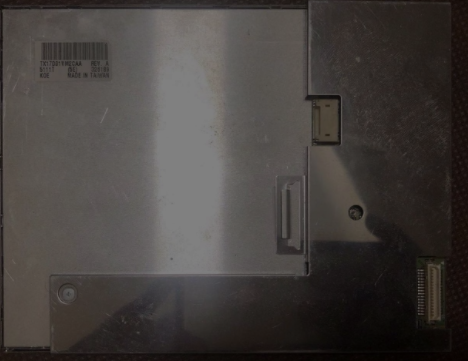

HITACHI 6.5" 640×480 600nits 172mA Tft Lcd Screen TX17D01VM2CAA

Name: HITACHI 65quot 640480 600nits 172mA Tft Lcd Screen TX17D01VM2CAA
Brand: HITIACH
Price: 1 USD

Wholesale HITACHI 6.5" 640×480 600nits 172mA Tft Lcd Screen TX17D01VM2CAA from china suppliers

Brand Name : HITIACH

Model Number : TX17D01VM2CAA

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 2-3 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TX17D01VM2CAA

BRAND : HITIACH

SIZE : 5.7 inch

RESOLUTION : 640(RGB)×480 (VGA) 122PPI

BRIGHTNESS : 600 cd/m² (Typ.)

TEMPERATURE RANGE : Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²)

Contact Now

HITACHI TX17D01VM2CAA Summary

TX17D01VM2CAA is a 6.5" diagonal a-Si TFT-LCD display panel product from Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).

HITACHI TX17D01VM2CAA Application Details

Basic Info :	Panel Brand		Panel Model	TX17D01VM2CAA
	Diagonal Size	6.5"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-30 ~ 80 °C
Reliability :	RoHS State		Vibration Rating	2.0G (19.6 m/s²)
Specific Features :

HITACHI TX17D01VM2CAA Mechanical Details

Pixel Features :	Pixel Format	640(RGB)×480 [VGA]	Dot Pitch	0.069×0.207 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.207×0.207 mm (H×V) [122PPI]
Mechanical Size :	Display Area	132.48×99.36 mm (H×V)	Bezel Area	135.9×102.8 mm (H×V)
Mechanical Size :	Outline Dim.	153×118 mm (H×V)	Outline Depth	9.1±0.3 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Holes & Brackets :	Side mounting holes (4-M2)
Other Features :	Weight	190g (Typ.)	Surface	-

HITACHI TX17D01VM2CAA Optical Details

Basic Information :	Brightness	600 cd/m² (Typ.)	Contrast Ratio	600:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/60/80 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	6 o'clock	Response Time	30 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.300; Wy:0.310	Color Numbers	262K (6-bit)
Color Performance :	Color Temperature	7525K	White Uniformity	1.43 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	45%	sRGB	62% coverage
	Adobe RGB	47% coverage	DCI-P3	46% coverage
	Rec.2020	33% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
