TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : HITIACH

Model Number : TX14D11VM1CBD

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 300PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

Price : 80USD

MODEL NUMBER : TX14D11VM1CBD

BRAND : HITIACH

SIZE : 5.7INCH

RESOLUTION : 320×240, QVGA, 70PPI

BRIGHTNESS : 400 cd/m² (Typ.)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

HITACHI TX14D11VM1CBD Application Features

Basic Information : Brand Name Model Name Type Model Alias
TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY TX14D11VM1CBD a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY -20 ~ 70 °C -30 ~ 80 °C 2.0G (19.6 m/s²)
Application :
  • TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY
Typical Features :
  • TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY

HITACHI TX14D11VM1CBD Mechanical Features

Screen Size : 5.7"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
320(RGB)×240, QVGA RGB Vertical Stripe 0.120×0.360 mm 0.360×0.360 mm [70PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
115.2×86.4 mm 119.4×90.6 mm 167×109 mm 9.2 (Typ.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
165g (Typ.) - -
Holes & Brackets : Face mounting holes (4-Φ3.5

HITACHI TX14D11VM1CBD Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
400 cd/m² (Typ.) TN, Normally White, Transmissive 350:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 60/60/75/55 (Typ.)(CR≥5)TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY 45 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
4829K 262K (6-bit) X:0.350; Y:0.350
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
55% 77% 58%
DCI-P3 Coverage Rec.2020 Coverage Remarks
57% 41% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.43 (Max.)(9 points) TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY

HITACHI TX14D11VM1CBD Electronics Features

Refresh Rate : 60Hz TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY
Reverse Scan : No
Power Consumption : 1.2W (Typ.)
Time Controller (T-CON) : Embedded T-CON

HITACHI TX14D11VM1CBD Backlight Features

Back-light Features: Type Position Life(Hours) Amount TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY Shape Replacement
WLED Edge light type 40K(Typ.) 3S7P Array -
WLED Electrical : Input Voltage Input Current Power Consumption TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY
12.0±0.5V 84/91mA (Typ./Max.) 1.0W (Typ.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY
JST BHR-03VS-1 1 pcs 3 pins 4.0 mm BLE-3PINS-ANC

HITACHI TX14D11VM1CBD Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.)(VDD) 65mA (Typ.)(IDD) 215mW (Typ.)
Voltage for Display Signals : VSS≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Interface Features : Signal Type Physical Type Interface Position
CMOS (1 ch, 6-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY
JAE FA5B040HP1 1 pcs 40 pins 0.5 mm DRGB-40P1C6B-420A


Product Tags:

LVDS TFT LCD Panel



High Brightness TFT LCD 149PPI



SVGA 82PPI TFT LCD Panel


Wholesale TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY from china suppliers

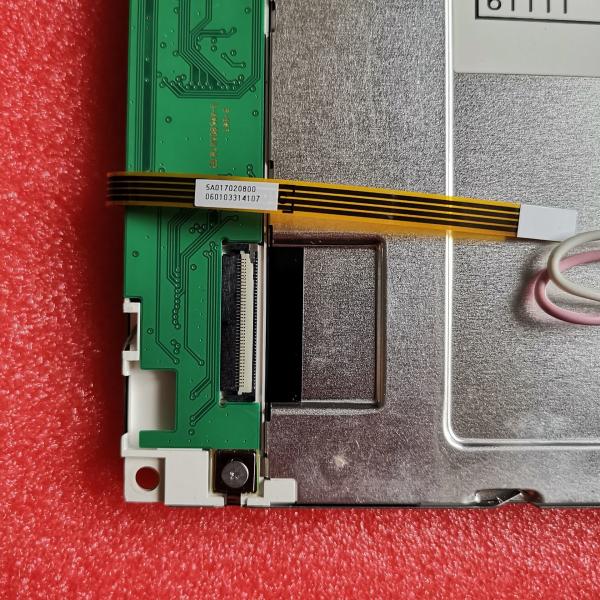

TX14D11VM1CBD HITACHI 5.7"320(RGB)×240 400 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY Images
