TX09D70VM1CBA HITACHI 3.5 inch 240(RGB)×320 400 (cd/m²) Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : HITACHI

Model Number : TX09D70VM1CBA

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1200PCS

Delivery Time : 1-3 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TX09D70VM1CBA

BRAND : HITIACH

SIZE : 3.5"inch

RESOLUTION : 240(RGB)×320 [QVGA] 113PPI

BRIGHTNESS : 400 cd/m² (Typ.)

TEMPERATURE RANGE : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

Contact Now

HITACHI TX09D70VM1CBA Application Details

Basic Info : Panel Brand Panel Model TX09D70VM1CBA
Diagonal Size 3.5" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C
RoHS State Vibration Rating 2.0G (19.6 m/s²)
Specific Features :

Remarks : 2 in 1 FPC

HITACHI TX09D70VM1CBA Mechanical Details

Pixel Features : Pixel Format 240(RGB)×320 [QVGA] Dot Pitch 0.0745×0.2235 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.2235×0.2235 mm (H×V) [113PPI]
Mechanical Size : Display Area 53.64×71.52 mm (H×V) Bezel Area 57.64×75.52 mm (H×V)
Outline Dim. 64×86 mm (H×V) Outline Depth 3.12/4.5 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Portrait type
Aspect Ratio 3:4 (H:V) Shape Style
Other Features : Weight 36.0g (Typ.) Surface

HITACHI TX09D70VM1CBA Optical Details

Basic Information : Brightness 400 cd/m² (Typ.) Contrast Ratio 300:1 (Typ.) (Transmissive)
Viewing Angle 70/70/80/60 (Typ.)(CR≥5) Optical Mode TN, Normally White, TMR
Viewing Direction 12 o'clock Response Time 30 (Typ.)(Tr+Td) (ms)
Color Performance : Chromaticity Wx:0.300; Wy:0.320 Color Numbers 262K (6-bit)
Color Temperature 7351K White Uniformity 1.43 (Max.)(5 points
1931 Color Gamlt : NTSC Ratio - sRGB 81% coverage
Adobe RGB 62% coverage DCI-P3 62% coverage
Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rc.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmittance -

HITACHI TX09D70VM1CBA Electronics Details

Frame Frequency : 60Hz
Reverse Scan : No
Time Controller (T-CON) : Need external T-CON

HITACHI TX09D70VM1CBA Backlight Details

Back-light Features: Lamp Shape 2 strings Lamp Type WLED Life Time -
Replacement - Amount 3S2P Position Edge light type
Lamp Electrical : Voltage Input Current Input 20/25mA (Typ./Max.)
Interface Features : Type Included in panel signal interface Position - Lamp Driver No

HITACHI TX09D70VM1CBA Interface Details

Signal Systerm : CMOS (1 ch, 6-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3/8.48/15.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) Current Input 0.56/2.3/0.033/0.028mA (IDD/IAVDD/IGH/IGL)
Interface Features : Type FPC Position -
FPC Detail : Brand Model Pin Pitch Pins Amount Configuration
0.5 mm 50 pins 1 pcs


Product Tags:

VGA 76PPI TFT LCD Panel



45% NTSC TFT LCD Panel


Wholesale TX09D70VM1CBA HITACHI 3.5 inch 240(RGB)×320 400 (cd/m²) Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY from china suppliers

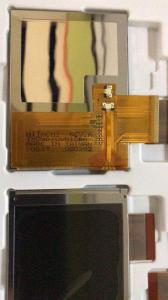

TX09D70VM1CBA HITACHI 3.5 inch 240(RGB)×320 400 (cd/m²) Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY Images
