SP14Q011-A1A KOE 5.7" 320×240, QVGA, 70PPI 170 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLA

  • 1
  • 2
  • 3

Brand Name : KOE

Model Number : SP14Q011-A1A

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 1-3 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : SP14Q011-A1A

BRAND : KOE

SIZE : 5.7 inch

RESOLUTION : 320×240, QVGA, 70PPI

BRIGHTNESS : 170 cd/m² (Typ.)

TEMPERATURE RANGE : Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Contact Now

KOE SP14Q011-A1A Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
SP14Q011-A1A FSTN-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
-20 ~ 70 °C -30 ~ 80 °C -
Used For :
Specific Features :


KOE SP14Q011-A1A Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
170 (Typ.) 40/40/40/50 (Typ.)(CR≥2) 330/150 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
6 o'clock STN, Black/White (Negative), Transmissive 25 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
- Monochrome

KOE SP14Q011-A1A Mechanical Features

Panel Size : 5.7"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
320×240 [QVGA] Rectangle 0.360×0.360 [70PPI] 0.360×0.360
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
115.2(H) × 86.4(V) 119.4(H) × 90.6(V) 131(H) × 102.2(V) 12.4/13.2 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V)
Touch Screen : Controller Touch Points Interface TP Technology
- - - 4-wire Resistive Touch
Mounting : Rear mounting holes (4-Φ2.5)
Other Detail : Weight Panel Cover Treatment
- - Antiglare

KOE SP14Q011-A1A Electronics Features

Reverse Scan : No
Vertical Frequency : 75Hz
Driving Method : Duty: 1/241

KOE SP14Q011-A1A Backlight Features

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type 1S8P Parallel 40K(Typ.) -
WLED Electrical : Voltage Supply Current Supply Power
5.0V (Typ.) 160/200mA (Typ./Max.)
Interface Features : Position Backlight Driver Type
- No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JST BHR-03VS-1 4.0 mm 3 pins 1 pcs BLE-3PINS-ANC

KOE SP14Q011-A1A Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
5.0V (Typ.) 30mA (Typ.) -
Interface Features : Position Signal Type
- Parallel Data (4-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
molex 52893-2095 0.5 mm 20 pins 1 pcs

Product Tags:

VGA 76PPI TFT LCD Panel



45% NTSC TFT LCD Panel


Wholesale SP14Q011-A1A KOE 5.7" 320×240, QVGA, 70PPI 170 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLA from china suppliers

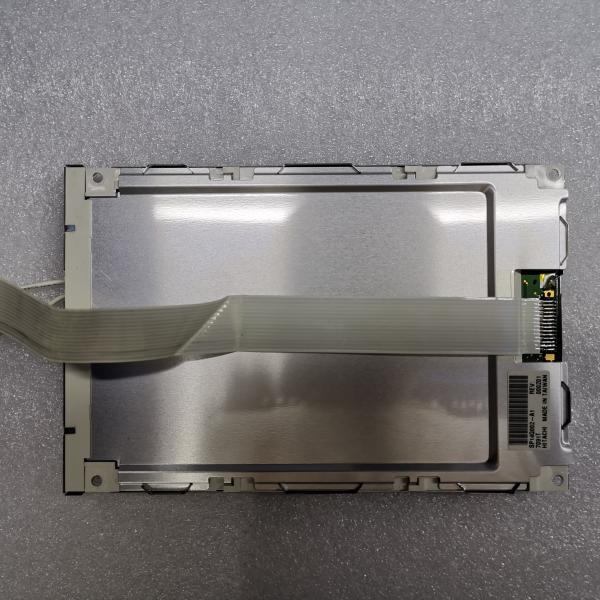

SP14Q011-A1A KOE 5.7" 320×240, QVGA, 70PPI 170 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLA Images
