AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP

Brand Name : Mitsubishi

Model Number : AA150XN09

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Price : 180USD

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 3 DAYS

Packaging Details : STANDARD PACKING

BRAND : Mitsubishi

SIZE : 15.0"

RESOLUTION : 1024(RGB)×768, XGA, 85PPI

BRIGHTNESS : 350 cd/m² (Typ.)

TEMPERATURE RANGE : Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C

Contact Now

Mitsubishi AA150XN09 Application Details

Basic Detail : Manufacturer AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP Model Name AA150XN09
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 15.0 inch Designed For
  • AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP
Maximum Ratings : OP Temperature 0 ~ 70 °C ST Temperature -20 ~ 80 °C
Vibration Level - RoHS AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP

Mitsubishi AA150XN09 Optical Details

Basic Information : Luminance 350 cd/m² (Typ.) Contrast Ratio 450 : 1 (Typ.) (Transmissive)
Good View at - Response Speed 6/19 (Typ.)(Tr/Td) (ms)
Viewing Angle 75/75/60/50 (Typ.)(CR≥10) AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color -
Color Temperature 6485K White Uniformity -
1931 Color Gamlt : NTSC Ratio 70% sRGB 95% coverage
Adobe RGB 74% coverage DCI-P3 73% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

OverviewSpecsStocksSuppliersTouch PanelsOEM/ODMRFQsDriver Kits

Mitsubishi AA150XN09 Application Details

Basic Detail : Manufacturer AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP Model Name AA150XN09
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 15.0 inch Designed For
  • AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP
Maximum Ratings : OP Temperature 0 ~ 70 °C ST Temperature -20 ~ 80 °C
Vibration Level - RoHS AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP
Features :
  • AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP

Mitsubishi AA150XN09 Optical Details

Basic Information : Luminance 350 cd/m² (Typ.) Contrast Ratio 450 : 1 (Typ.) (Transmissive)
Good View at - Response Speed 6/19 (Typ.)(Tr/Td) (ms)
Viewing Angle 75/75/60/50 (Typ.)(CR≥10) AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color -
Color Temperature 6485K White Uniformity -
1931 Color Gamlt : NTSC Ratio 70% sRGB 95% coverage
Adobe RGB 74% coverage DCI-P3 73% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP Back to Top

Mitsubishi AA150XN09 Mechanical Details

Pixel Features : Number of Pixel 1024(RGB)×768 [XGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.099×0.297 mm Pixel Pitch(W×H) 0.297×0.297 mm [85PPI]
Physical Size : Active Viewing 304.128(W)×228.096(H) mm Overall Dim. 326(W)×255(H) mm
Bezel Opening 308.1(W)×232.1(H) mm Overall Depth 12.6/16.4 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Fixation : Side mounting holes (4-M3) on left, right bezel

Mitsubishi AA150XN09 Electronics Details

Refresh Rate : 60Hz AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP

itsubishi AA150XN09 Interface Details

Signal Electrical : Input Current 480/750mA (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption - Signal Interface LVDS (1 ch, 6/8-bit)
Interface Features : Position AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP Physical Type Connector

Mitsubishi AA150XN09 Lightting Details

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top and Bottom)
Exchange - Amount 4 pcs Life -
Interface Features : Position AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP
JST BHSR-02VS-1 2 pcs 3.5 mm 2 pins BLL-2PINS-HH
JST BHR-02VS-1 2 pcs 4.0 mm 2 pins BLL-2PINS-LL

Product Tags:

TFT LCD Display SVGA 119PPI



LVDS TFT LCD Module


Wholesale AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP from china suppliers

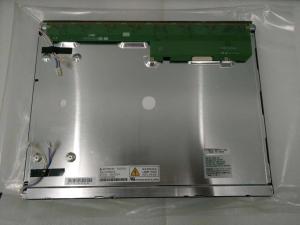

AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP Images
