AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

Brand Name : Mitsubishi

Model Number : AA150XS01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Price : 200USD

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 200PCS

Delivery Time : 3DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : AA150XS01

BRAND : Mitsubishi

SIZE : 15INCH

RESOLUTION : 1024×768 RGB

BRIGHTNESS : 350CD/M2

Signal Interface : LVDS

TEMPERATURE RANGE : Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Contact Now

Mitsubishi AA150XS01 Application Details

Basic Information : Brand AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY Model AA150XS01AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY 1 Compatible
Type LCM a-Si TFT-LCD Used For
  • AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY
Screen Size 15.0" Alias T-55519D150J-LW-A-AAN
Environment : Storage Temp. -20 ~~ 80 °C Operating Temp. -20 ~~ 70 °C
RoHS AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY Vibration 1.0G (9.8 m/s²)

Mitsubishi AA150XS01 Mechanical Details

Pixel Features : Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.099×0.297 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.297×0.297 (H×V) [85PPI]
Mechanical Size : Active Area(mm) 304.128(H) × 228.096(V) Bezel Area(mm) 308.1(H) × 232.1(V)
Outline Dim.(mm) 326(H) × 255(V) Depth(mm) 12.6/17.1 (Typ./Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Spec : Weight 1.26Kgs (Typ.) Treatment Antiglare, Hard coating (3H)

Mitsubishi AA150XS01 Optical Details

Basic Information : Luminance(cd/m²) 350 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY Display Mode SWV, Normally Black, Transmissive
Best View on Symmetry Response(ms) 12/12 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 262K/16.7M (6-bit / 8-bit)
Color Temperature 6485K White Uniformity 1.30 (Max.)(5 points) AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY
1931 Color Gamlt : NTSC Ratio 73% sRGB 97% coverage
Adobe RGB 75% coverage DCI-P3 76% coverage
Rec.2020 55% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Mitsubishi AA150XS01 Electronics Details

Frame Rate : 60Hz AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY
Reverse Scan : Yes (180°)
Power Consumption : 13.3W (Typ.)

Mitsubishi AA150XS01 Interface Details

Signal Electrical : Voltage Supply 3.3V (Typ.) Current Supply 550/1100mA (Typ./Max.)
Signal Type : LVDS (1 ch, 6/8-bit) Signal Voltage -
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY
HRS DF14H-20P-1.25H(56) 1 pcs 20 pins 1.25 mm LVDS-20P1C8B-010H

Mitsubishi AA150XS01 Backlight Details

Backlight Features: Shape 4 strings Type WLED Position Edge light type (Bottom side)
Replacement Replaceable Quantity 7S4P Life Time 100K(Typ.) (Hours)
Lamp Electrical : Voltage Supply 24.0/31.1V (Typ./Max.) Current Supply 120/130mA (Typ./Max.)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY
JST SM10B-SHLS-TF(LF)(SN) 1 pcs 10 pins 1.0 mm BLE-10PINS-NNCAACCAAC
Backlight Driver : No


Product Tags:

TFT LCD Panel 122 PPI



Symmetry TFT LCD Panel


Wholesale AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY from china suppliers

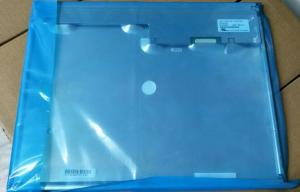

AA150XS01 Mitsubishi 15INCH 1024×768 RGB 350CD/M2 WLED LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY Images
