LG Display LM270WFA-SSA1 Application Details
| Basic Information : | Brand | | Model | LM270WFA-SSA1 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 27.0" | Alias | LM270WFA (SS)(A1) |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
LG Display LM270WFA-SSA1 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.1038×0.3114 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3114×0.3114 (H×V) [81PPI] |
| Mechanical Size : | Active Area(mm) | 597.888(H) × 336.312(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 607.1(H) × 354.1(V) | Depth(mm) | 7.0 (Typ.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | 3-side borderless |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Touch Panel : | Touch Points | 10 points | Touch Panel | In-Cell Touch |
| TP Controller | With controller | Touch Signal | USB |
| Mounting : | Rear mounting holes (13-M3) |
| Other Spec : | Weight | 3.14/3.30Kgs (Typ./Max.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
LG Display LM270WFA-SSA1 Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 79% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 82% coverage |
| Rec.2020 | 59% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM270WFA-SSA1 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 531/807mA (Typ./Max.) |
| Consumption | 2.66/4.03W (Typ./Max.) |
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160B |
LG Display LM270WFA-SSA1 Backlight Details
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | 16S4P | Life Time | 30K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 45.28±3.2V | Current Supply | 85/90mA (Typ./Max.) |
| Consumption | 15.4/16.48W (Typ./Max.) |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BM06B-SHJS-TB(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC |
| Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.1(W)×354.1(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 3.14/3.30Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WFA-SSA1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 16S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WFA-SSA1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
|
|

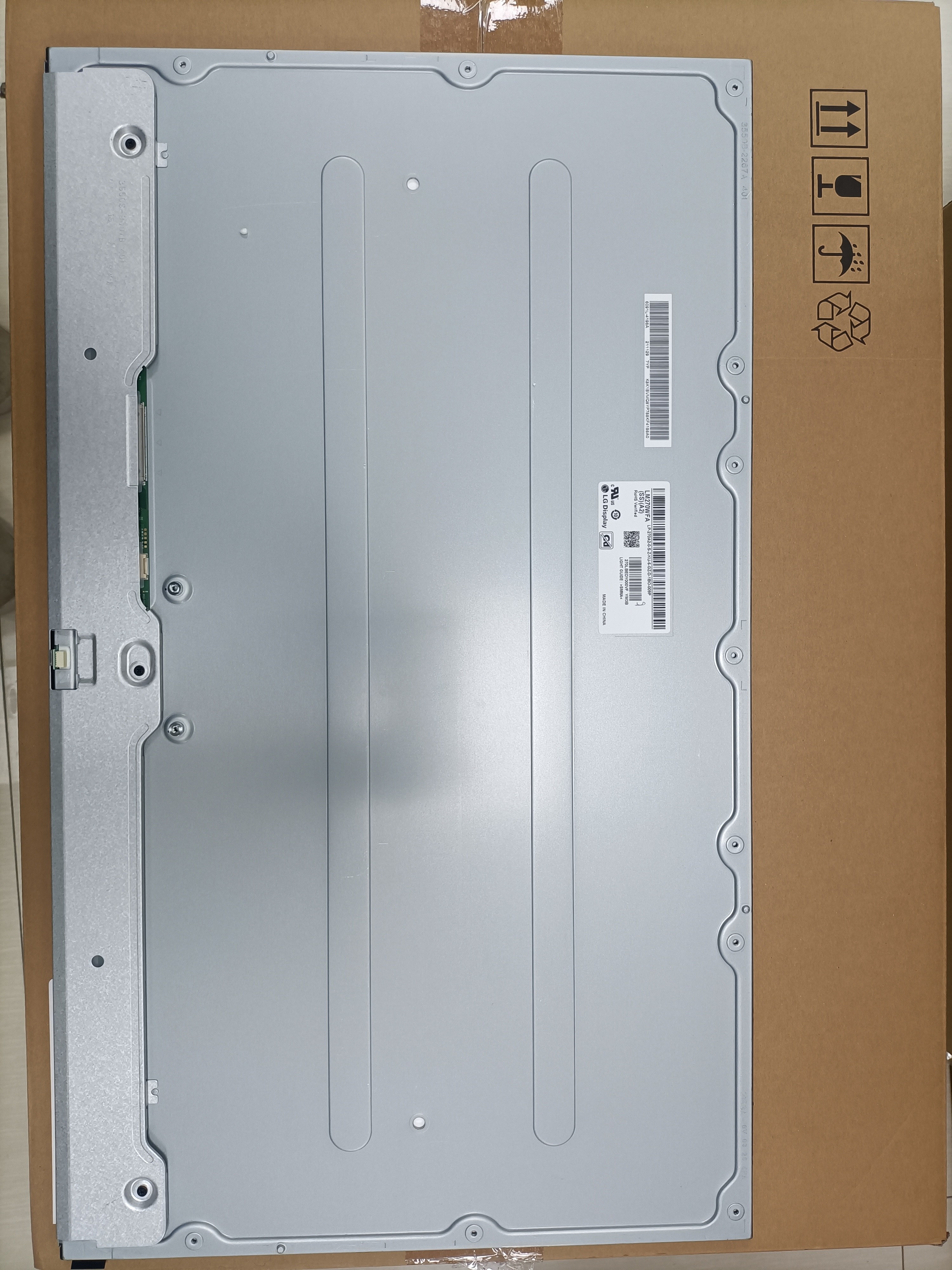

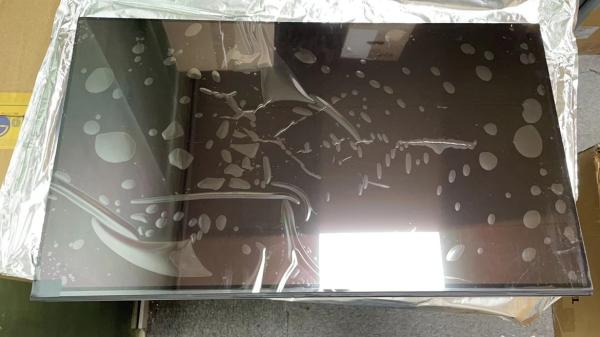

LM270WFA-SSA1 LG Display 27.0" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY Images
|
